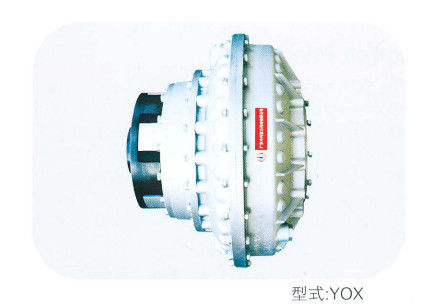

YOX Series Torque Limiting Hydraulic Fluid Coupling Constant Filling Fluid Couplings

YOX Series Torque Limiting Hydraulic Fluid Coupling Constant Filling Fluid Couplings

Products - Conveying Equipment - Hydraulic Fluid Coupling
  • Highlight

    YOX Series Hydraulic Fluid Coupling

    ,

    Cranes Filling Fluid Couplings

    ,

    YOX II fcu fluid coupling

  • Product Name
    Hydraulic Couplings/Fluid Couplings
  • Standard Or Nonstandard
    Standard
  • Material
    Stainless Steel, Steel
  • Flexible Or Rigid
    Flexible
  • Application
    Mining/Metallurgical/Cranes/Construction Machinery
  • Type
    YOX,YOX II,YOXn
  • Place of Origin
    China
  • Model Number
    YOX Series

YOX Series Torque Limiting Hydraulic Fluid Coupling Constant Filling Fluid Couplings

  • YOX Series Torque Limiting Hydraulic Fluid Coupling Constant Filling Fluid Couplings
Get Price Contact Now

YOX Series Torque Limiting Hydraulic Fluid Coupling Constant Filling Fluid Couplings



Working Principle:



The working principle of YOX Series Torque Limiting Hydraulic Fluid Coupling: Fill the working chamber of the coupling with a certain amount of working fluid (usually No. 32 turbine oil), and the working wheel and pump wheel obtain mechanical energy from the electric motor and convert it into liquid kinetic energy, pushing the turbine to rotate, the turbine converts the kinetic energy of the liquid into mechanical energy, and drives the working machine to work through the output shaft, over and over again, realizing the energy transfer from the prime mover to the working machine.



Features:


1. Protect the motor and improve the starting ability of the squirrel cage motor.
2. Shorten the motor starting time and reduce the average current during the starting process.
3. Reduce starting shock and vibration and prevent power overload.
4. In a multi-machine drive system, the load of each motor can be balanced.
5. Simple structure, reliable, no mechanical wear and no special maintenance.



Main Technical Data: (Including YOX,YOX II,YOXn)



国家标准 型号

Chinese

standard

type

输入转速

Input

speed

n(r.p.m)

传递功率

范围

Range of

power

transmitted

N(kW)

过载系数Tg

Over load Coeff

效率

Effic iency

η

外型尺寸

Dimensions(mm)

最大输

入孔径

及长度

(mm)

d.maX

Lmax

最大输

出孔径

及长度

(mm)

hmaX

L.max

充油量q(1)

Volume of

filling oil

重量

Weight

(kg)
起动 startup 制动 brake D A A C F

qmin

(1)

40%

qmaX

(1)

80%
YOX180 1000 0.1-0.3 2-2.7 2-2.7 0.97 ×232 205 125 40

②30

50

×25

50

 0.24 0.48 7
1500 0.5-1.1
YOX200 1000 0.2-0.55 2-2.7 2-2.7 0.97 ×254 193 128 25

②35

60

Ø 30

60

 0.6 1.2 8.8
1500 0.8-2.2
YOX220 1000 0.4-1.1 2-2.7 2-2.7 0.97 >278 226 136 50

Ø40

       80

Ø35

       80

 0.76 1.52 13
1500 1.5-3
YOX250 1000 0.8-1.5 2-2.7 2-2.7 0.97 305 241 156 35

Ø45

       80

Ø40

       80

 1.1 2.1 16
1500 2.5-5.5
YOX280 1000 1.5-7 2-2.7 2-2.7 0.97 ×345 254 164 35

②50

80

45

110

 1.4 2.8 21
1500 4.5-8
YOX320 1000 2.5-5.5 2-2.7 2-2.7 0.97 ②380 279 179 35

×55

110

45

110

 2.2 4.4 28
1500 9-18.5
YOX340 1000 3-9 2-2.7 2-2.7 0.97 ②390 296 187 35 2

055

110

50

110

 2.7 5.3 36.5
1500 12-22
YOX360 1000 5-10 1.5-1.8 2-2.5 0.96 ×428 308 229 10 3

②60

110

55

110

 3.4 6.7 42
1500 16-30
YOX400 1000 8-18.5 1.5-1.8 2-2.5 0.96 ×472

338

353

 256

5

20

 4 ②70 ②60 5.2 10.4 65
1500 28-48 110140 140
YOX450 1000 15-30 1.5-1.8 2-2.5 0.96 ②530 385 292 ·10 6

Ø7 5

140

×70

140

 7.5 15 79.5
1500 50-90
YOX500 1000 25-50 1.5-1.8 2-2.5 0.96 582 435 316 30 5

Ø90

       170

Ø90

       170

 10.3 20.5 105.5
1500 68-144
YOX560 1000 40-80 1.5-1.8 2-2.5 0.96 634

449

490

 350

5

45

 7 ×100 100 13.2 26.4 152
1500 120-270 17020 210
YOX600 1000 60-115 1.5-1.8 2-2.5 0.96 695

490

510

 380

5

25

 7 100 115 16.8 33.6 185
1500 200-360 170210 210
YOX650 1000 90-176 1.5-1.8 2-2.5 0.96 ×760 558 425 25 6

>120

210

 σ 130 210 24 48 230
1500 260-480
YOX750 1000 170-330 1.5-1.8 2-2.5 0.96 ②86 578 450 0 2

Ø120

   210

140

210

 34 68 350
1500 380-760
YOX875 750 145-280 1.5-1.8 2-2.5 0.96 992 705 514 55 7

150

250

>150

250

 56 112 495
1000 330-620
1500 760-1100
YOX1000 600 160-30 1.5-1.8 2-2.5 0.96 1138 735 577 0 3

②160

250

Ø160

280

 74 148 650
750 260-590
YOX1150 600 265-615 1.5-1.8 2-2.5 0.96 ×1312 848 669 10 3

8170

300

2170

300

 85 170 810
750 525-1195



YOX1250

 500 235-540



1.5-1.8



2-2.5



0.96

 ②1420



942



767



10



4

×200

300

 ②200 300



110



210



960
600 400-935
750 800-1800



YOX1320

 500 315-710



1.5-1.8



2-2.5



0.96



1500



1052



855



95



×210

320

2210

320



128



230



1080
600 650-1200
750 1050-2360

Notes: YOX are the normal type with 10-22S startup time.



Structural Drawings:



Transmission l:YOX Single Cavity External-Wheel-Drive Type
1. Electric motor
2. Constant filing fluid couplings
3. Reducer



YOX Series Torque Limiting Hydraulic Fluid Coupling Constant Filling Fluid Couplings 0



Transmission Il:YOXn Single Cavity External-Wheel-Drive Type
1. Electric motor
2. Constant filling fluid couplings
3. Pulley



YOX Series Torque Limiting Hydraulic Fluid Coupling Constant Filling Fluid Couplings 1
