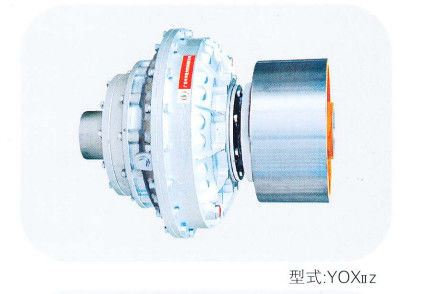

YOX YOXn Constant Filling Hydraulic Couplings Fluid Couplings
Torque Limiter Coupling Working Principle:
1. External drive, cavity for turbine impeller, the impeller is connected with the casing of pump wheel, elastic coupling on the motor side, coupling weight is mainly composed of reducer bearing.
2. Auxiliary chamber, which belongs to the dynamic pressure discharge type, instantaneous overload protection ability, fast reaction speed, overload coefficient is low, can effectively limit the starting torque.
3. The YOX series is a TD type belt conveyor special accessory products.
4. When the reducer shaft than the motor shaft is much thinner, best not to choose this type, also can take input, output inverted measures, to prevent the broken shaft of reducer. When inverted performance changes, but does not affect the use.
5. Double speed or speed motor drive coupling according to the parameter selection at low level. YOX series coupling with a quincunx elastic body is connected.
Hydraulic Couplings Fluid Couplings Features:
1. Protectng electfc motor and improving ability of the electic motor.
2. Shortening the period of startup; reducing average electric current during the starting process.
3. Lessening shock and vibration in startup Proven ting overload.
4. Balacing loads of each motor in muti_motor drive system.
5. Simple reliable structure.No machanical wear.No need foe special maintenance.
Torque Limiting Hydraulic Fluid Coupling Technical Data: (Including YOX,YOX II,YOXn)
|
国家标准 型号 Chinese standard type |
输入转速 Input speed n(r.p.m) |
传递功率 范围 Range of power transmitted N(kW) |
过载系数Tg Over load Coeff |
效率 Effic iency η |
外型尺寸 Dimensions(mm) |
最大输 入孔径 及长度 (mm) d.maX Lmax |
最大输 出孔径 及长度 (mm) hmaX L.max |
充油量q(1) Volume of filling oil |
重量 Weight (kg) |
||||||
| 起动 startup | 制动 brake | D | A | A | C | F |
qmin (1) 40% |
qmaX (1) 80% |
|||||||
| YOX180 | 1000 | 0.1-0.3 | 2-2.7 | 2-2.7 | 0.97 | ×232 | 205 | 125 | 40 |
②30 50 |
×25 50 |
0.24 | 0.48 | 7 | |
| 1500 | 0.5-1.1 | ||||||||||||||
| YOX200 | 1000 | 0.2-0.55 | 2-2.7 | 2-2.7 | 0.97 | ×254 | 193 | 128 | 25 |
②35 60 |
Ø 30 60 |
0.6 | 1.2 | 8.8 | |
| 1500 | 0.8-2.2 | ||||||||||||||
| YOX220 | 1000 | 0.4-1.1 | 2-2.7 | 2-2.7 | 0.97 | >278 | 226 | 136 | 50 |
Ø40 80 |
Ø35 80 |
0.76 | 1.52 | 13 | |
| 1500 | 1.5-3 | ||||||||||||||
| YOX250 | 1000 | 0.8-1.5 | 2-2.7 | 2-2.7 | 0.97 | 305 | 241 | 156 | 35 |
Ø45 80 |
Ø40 80 |
1.1 | 2.1 | 16 | |
| 1500 | 2.5-5.5 | ||||||||||||||
| YOX280 | 1000 | 1.5-7 | 2-2.7 | 2-2.7 | 0.97 | ×345 | 254 | 164 | 35 |
②50 80 |
45 110 |
1.4 | 2.8 | 21 | |
| 1500 | 4.5-8 | ||||||||||||||
| YOX320 | 1000 | 2.5-5.5 | 2-2.7 | 2-2.7 | 0.97 | ②380 | 279 | 179 | 35 |
×55 110 |
45 110 |
2.2 | 4.4 | 28 | |
| 1500 | 9-18.5 | ||||||||||||||
| YOX340 | 1000 | 3-9 | 2-2.7 | 2-2.7 | 0.97 | ②390 | 296 | 187 | 35 | 2 |
055 110 |
50 110 |
2.7 | 5.3 | 36.5 |
| 1500 | 12-22 | ||||||||||||||
| YOX360 | 1000 | 5-10 | 1.5-1.8 | 2-2.5 | 0.96 | ×428 | 308 | 229 | 10 | 3 |
②60 110 |
55 110 |
3.4 | 6.7 | 42 |
| 1500 | 16-30 | ||||||||||||||
| YOX400 | 1000 | 8-18.5 | 1.5-1.8 | 2-2.5 | 0.96 | ×472 |
338 353 |
256 |
5 20 |
4 | ②70 | ②60 | 5.2 | 10.4 | 65 |
| 1500 | 28-48 | 110140 | 140 | ||||||||||||
| YOX450 | 1000 | 15-30 | 1.5-1.8 | 2-2.5 | 0.96 | ②530 | 385 | 292 | ·10 | 6 |
Ø7 5 140 |
×70 140 |
7.5 | 15 | 79.5 |
| 1500 | 50-90 | ||||||||||||||
| YOX500 | 1000 | 25-50 | 1.5-1.8 | 2-2.5 | 0.96 | 582 | 435 | 316 | 30 | 5 |
Ø90 170 |
Ø90 170 |
10.3 | 20.5 | 105.5 |
| 1500 | 68-144 | ||||||||||||||
| YOX560 | 1000 | 40-80 | 1.5-1.8 | 2-2.5 | 0.96 | 634 |
449 490 |
350 |
5 45 |
7 | ×100 | 100 | 13.2 | 26.4 | 152 |
| 1500 | 120-270 | 17020 | 210 | ||||||||||||
| YOX600 | 1000 | 60-115 | 1.5-1.8 | 2-2.5 | 0.96 | 695 |
490 510 |
380 |
5 25 |
7 | 100 | 115 | 16.8 | 33.6 | 185 |
| 1500 | 200-360 | 170210 | 210 | ||||||||||||
| YOX650 | 1000 | 90-176 | 1.5-1.8 | 2-2.5 | 0.96 | ×760 | 558 | 425 | 25 | 6 |
>120 210 |
σ 130 210 | 24 | 48 | 230 |
| 1500 | 260-480 | ||||||||||||||
| YOX750 | 1000 | 170-330 | 1.5-1.8 | 2-2.5 | 0.96 | ②86 | 578 | 450 | 0 | 2 |
Ø120 210 |
140 210 |
34 | 68 | 350 |
| 1500 | 380-760 | ||||||||||||||
| YOX875 | 750 | 145-280 | 1.5-1.8 | 2-2.5 | 0.96 | 992 | 705 | 514 | 55 | 7 |
150 250 |
>150 250 |
56 | 112 | 495 |
| 1000 | 330-620 | ||||||||||||||
| 1500 | 760-1100 | ||||||||||||||
| YOX1000 | 600 | 160-30 | 1.5-1.8 | 2-2.5 | 0.96 | 1138 | 735 | 577 | 0 | 3 |
②160 250 |
Ø160 280 |
74 | 148 | 650 |
| 750 | 260-590 | ||||||||||||||
| YOX1150 | 600 | 265-615 | 1.5-1.8 | 2-2.5 | 0.96 | ×1312 | 848 | 669 | 10 | 3 |
8170 300 |
2170 300 |
85 | 170 | 810 |
| 750 | 525-1195 | ||||||||||||||
|
YOX1250 |
500 | 235-540 |
1.5-1.8 |
2-2.5 |
0.96 |
②1420 |
942 |
767 |
10 |
4 |
×200 300 |
②200 300 |
110 |
210 |
960 |
| 600 | 400-935 | ||||||||||||||
| 750 | 800-1800 | ||||||||||||||
|
YOX1320 |
500 | 315-710 |
1.5-1.8 |
2-2.5 |
0.96 |
1500 |
1052 |
855 |
95 |
×210 320 |
2210 320 |
128 |
230 |
1080 |
|
| 600 | 650-1200 | ||||||||||||||
| 750 | 1050-2360 | ||||||||||||||
Notes: YOX are the normal type with 10-22S startup time.
Structural Drawings:
Transmission l: YOX Single Cavity External-Wheel-Drive Type
1. Electric motor
2. Constant filing fluid couplings
3. Reducer
Transmission Il: YOXn Single Cavity External-Wheel-Drive Type
1. Electric motor
2. Constant filling fluid couplings
3. Pulley
