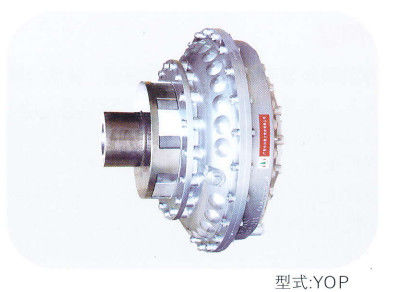

YOXIIZ Type Torque Limiting Hydraulic Fluid Coupling Constant Limited Torque Limiter Coupling
Torque Limiter Coupling Overview:
1. External drive, cavity for turbine impeller, the impeller is connected with the casing of pump wheel, elastic coupling on the motor side, coupling weight is mainly composed of reducer bearing.
2. Auxiliary chamber, which belongs to the dynamic pressure discharge type, instantaneous overload protection ability, fast reaction speed, overload coefficient is low, can effectively limit the starting torque.
3. The YOX series is a TD type belt conveyor special accessory products.
4. When the reducer shaft than the motor shaft is much thinner, best not to choose this type, also can take input, output inverted measures, to prevent the broken shaft of reducer. When inverted performance changes, but does not affect the use.
5. Double speed or speed motor drive coupling according to the parameter selection at low level.
Hydraulic Couplings Fluid Couplings Application:
Belt conveyor, scraper conveyor, chain conveyor, screw conveyor, excavator, bucket wheel excavator, various elevators, ball mill, crusher, coal mill, tower crane, gantry crane, bridge type Cranes, bucket wheel stackers and reclaimers, centrifuges, washing machines, tannery drums, amusement machines, mixers, wire drawing machines, rubber mixing machines, injection molding machines, extruders, pre-added water ball machines, boiler slag crushers, etc. .
Hydraulic Fluid Coupling Technical Data:
|
规格型号 Specification Type |
输入转速 Input speed n(r.p.m) |
传递功率 范围 Ranger of power transmitted N(kW) |
过载系数 Over load coeff Tg |
效率 Effic iency
n |
最大输入孔 径及长度 Max.Input bore diameter Length d jmax/l,max |
最大输出孔 径及长度 Max.output bore diameter Length d2max/Lzmax |
充油量 (L Volume of filling oil) |
外型尺寸 Dimensions (mm) |
重量 Weight |
|||||||||
|
起动 start |
制动 brake |
40% qmin |
80% qmax |
A | A1 | D | B | D₁ | A2 | C | E | (kg) | ||||||
| YOXIIz400 | 1000 | 8-18.5 | 1.5-1.8 | 2-2.5 | 0.96 | 265/140 | 〇65/140 | 5.2 | 10.4 | 556 | 358 | 0472 | 150 | @315 | 10 | 38 | 101 | 113 |
| 1500 | 28-48 | |||||||||||||||||
| YOXIIz450 | 1000 | 15-30 | 1.5-1.8 | 2-2.5 | 0.96 | 075/140 | 75/140 | 7.5 | 15 | 580 | 382 | ②530 | 150 | ②315 | 10 | 38 | 90 | 128 |
| 1500 | 50-90 | |||||||||||||||||
| YOXIIz500 | 1000 | 25-50 | 1.5-1.8 | 2-2.5 | 0.96 | 090/170 | 090/170 | 10.3 | 20.5 | 666 | 423 | σ582 | 190 | 0400 | 10 | 42 | 107 | 155 |
| 1500 | 68-144 | |||||||||||||||||
| YOXIIz560 | 1000 | 40-80 | 1.5-1.8 | 2-2.5 | 0.96 | Q100/210 | 0100/210 | 13.2 | 26.4 | 736 | 491 | 0634 | 190 | @400 | 10 | 42 | 144 | 205 |
| 1500 | 120-270 | |||||||||||||||||
| YOXIIz600 | 1000 | 60-115 | 1.5-1.8 | 2-2.5 | 0.96 | 0110/210 | 0110/210 | 16.8 | 33.6 | 790 | 520 | 0695 | 210 | ②500 | 15 | 45 | 140 | 260 |
| 1500 | 200-360 | |||||||||||||||||
| YOXIIz650 | 1000 | 90-176 | 1.5-1.8 | 2-2.5 | 0.96 | 0120/21C | 0120/210 | 24 | 48 | 829 | 560 | 760 | 210 | σ500 | 15 | 45 | 134 | 385 |
| 1500 | 260-480 | |||||||||||||||||
| YOXIIz750 | 1000 | 170-330 | 1.5-1.8 | 2-2.5 | 0.96 | 0130/210 | 0130/210 | 34 | 68 | 940 | 610 | 0860 | 265 | @630 | 15 | 50 | 160 | 488 |
| 1500 | 380-760 | |||||||||||||||||
| YOXIIz875 | 750 | 140-280 | 1.5-1.8 | 2-2.5 | 0.96 | @140/250 | Q140/250 | 56 | 112 | 1040 | 680 | 0992 | 265 | 0630 | 20 | 75 | 160 | 655 |
| 1000 | 330-620 | |||||||||||||||||
Notes: This form is the type in structures with brake wheel. It has the following features:
1. It is the fix form chosen by the designing group which is in charge of the DTll renewal &.change in the whole country. It has been listed in the designing brochure.
2. It is outer wheel-drive form.The structure is well-knit.
3. All dimensions is unified in the whole trade.
Hydraulic Fluid Coupling Structural Drawing:
