Low Noise Conveyor Carrying Roller Belt Conveyor Carrier Roller
Conveyor Carrying Roller Spacing
The load-bearing branch is 1000~1200mm; the return branch is 2400~3000mm; the distance between the convex and concave arc sections is determined by calculation, usually 500 or 600mm; the distance between the buffer rollers is determined according to the loose density, blockiness and blanking height of the material, generally Under certain conditions, 1/2 to 1/3 grooved roller spacing can be used.
Bearing Model Codes For Rollers
|
Roller Diameter mm |
Bearing Model |
Shaft Diameter mm |
| 89 | 4G204,4G205 | 20,25 |
| 108 | 4G204,4G205,4G305,4G306 | 20,25,30 |
| 133 | 4G205,4G305,4G306 | 25,30 |
| 159 | 4G205,4G305,4G306 | 25,30 |

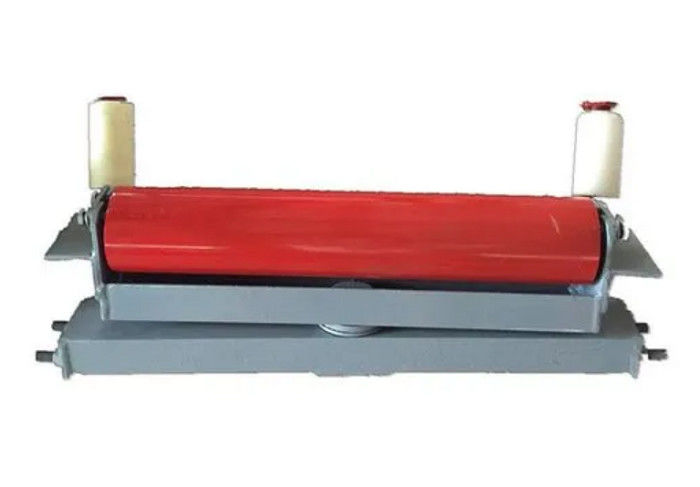

Belt Conveyor Carrier Roller ( Figure 17).
This series uses stamped bearing seats and refined seam welded pipes welded together. It adopts large clearance bearings, smooth drawn shafts and double-layer labyrinth sealing structures. It has the characteristics of high precision, good sealing, light weight and long service life.
Our products are sold all over the world, you can rest assured.
