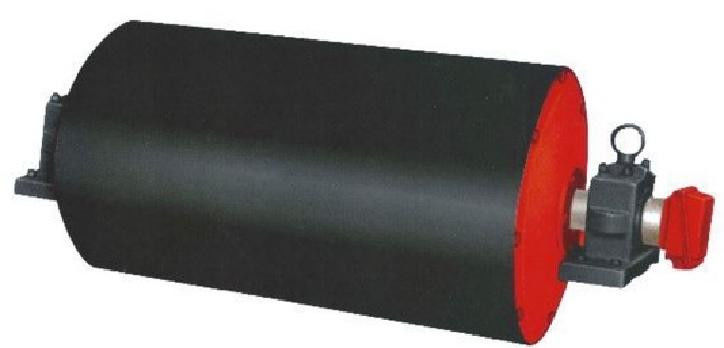

YTH Type External Electric Roller Motorised Conveyor Rollers Dia 320mm-1000mm

YTH Type External Electric Roller Motorised Conveyor Rollers Dia 320mm-1000mm

External Electric Roller Overview

The internal part of the product is a driving device with hard tooth surface planetary gear reduction, which has the advantages of strong overload capacity, large power range, stable transmission and low noise. It can meet the requirements of various check and glue wrapping, and can also be equipped with flameproof motor. It is suitable for large and medium-sized belt conveyors with various harsh environments and explosion-proof requirements.

Motorised Conveyor Rollers Composition

The YTH type externally mounted reduction drum consists of three parts: the drum body, the driver and the motor bracket (type I does not have a motor bracket). The drum body mainly includes motors, couplings, fluid couplings, backstops, brakes and other components. The motor bracket is made of welded steel and is used to install the motor and guard. The user can design and manufacture it as needed.

Electric Conveyor Roller Specification
