PPCS Baghouse Dust Collector Bag House Filter In Cement Industry
Description:
PPC Series Pulse Jet Bag Filter incorporates the advantages of other bag filters as compartmental blow-back, pulse jet cleaning. It is suitable to the treatment of high concentration dust, simplifying the technical process of dust treatment and reducing investment of device.
Application:
Pulse Jet Baghouse is widely used in cement, building material, metallurgy, chemical and refractory industries, especially for the dust collection system, such as the crushing, packing, clinker cooling and various grinding mill in cement plant. It is also suitable for dust collection of coal grinding after some modification.
Advantage:
1. New and advanced dust removing concept. No air pipe. Pulse valve is assembled at the side the chamber shell or top. No need to disassemble and assemble the air pipe when replacing the bags.
2. High performance pulse is applied to replace many smaller pulse to reduce the maintenance as much as possible. Multi-chamber and off-line dust removing. Long life of filter bag. Air tank will reduce the pressure decrease caused by equipment.
3. Available for high density dust containing air collection, for example, O-Sepa separator, the dust content of which will reach 1000g/Nm3.
4. Jet Pulse Bag Filter overcomes disadvantages of weak cleaning strength of blow-back as well as synchronous working of pulse jet cleaning and filtering, expanding the filed of application.
Specification:
|
PPCS 32-3 |
PPCS 32-4 |
PPCS 32-5 |
PPCS 32-6 |
PPCS 64-4 |
PPCS 64-5 |
PPCS 64-6 |
PPCS 64-7 |
PPCS 64-8 |
PPCS 96-5 |
PPCS 96-2*5 |
PPCS 128-6 |
PPCS 128-2*6 |
||
| Processing air volume (m3/h) | 6900 | 8930 | 11160 | 13390 | 17800 | 22300 | 26700 | 31200 | 35700 | 33400 | 67250 | 67300 | 134600 | |
| Filter wind speed (m/min) | 1.2-2.0 | |||||||||||||
| total filter area (m3) | 93 | 124 | 155 | 186 | 248 | 310 | 372 | 434 | 496 | 465 | 934 | 935 | 1869 | |
| Net filter area (m3) | 62 | 93 | 124 | 155 | 186 | 248 | 310 | 272 | 434 | 372 | 856 | 779 | 1713 | |
| Number of dust collector chambers(pcs) | 3 | 4 | 5 | 6 | 4 | 5 | 6 | 7 | 8 | 5 | 10 | 6 | 12 | |
| filter bags number (pcs) | 96 | 128 | 160 | 192 | 256 | 320 | 384 | 448 | 512 | 480 | 960 | 768 | 1536 | |
| Dust collector resistance (Pa) | 1470-1770 | 1470-1770 | 1470-1770 | |||||||||||
| Imported gas dust concentration (g/m3) | ＜200 ＜1000 | ＜1300 | ＜1300 | |||||||||||
| Exported gas dust concentration (g/m3) | ＜0.1 | ＜1.0 | ＜0.1 | |||||||||||
|
pulse valve (With solenoid valve) |
number(pcs) | 3 | 4 | 5 | 6 | 4 | 5 | 6 | 7 | 8 | 5 | 10 | 12 | 24 |
|
Dimensions (inches) |
1½ | 2½ | 2½ | |||||||||||
|
Poppet valve (with cylinder) |
number(pcs) | 3 | 4 | 5 | 6 | 4 | 5 | 6 | 7 | 8 | 5 | 10 | 6 | 12 |
|
number (pcs)(mm) |
poppet valveφ460, cylinderφ63 |
poppet valveφ595,cylinderφ100 |
poppet valveφ725, cylinderφ100 |
poppet valveφ725, cylinderφ100 |
||||||||||

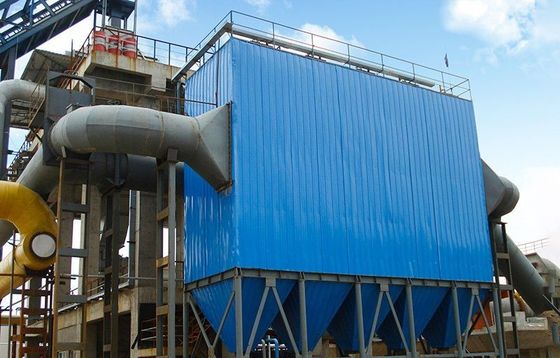

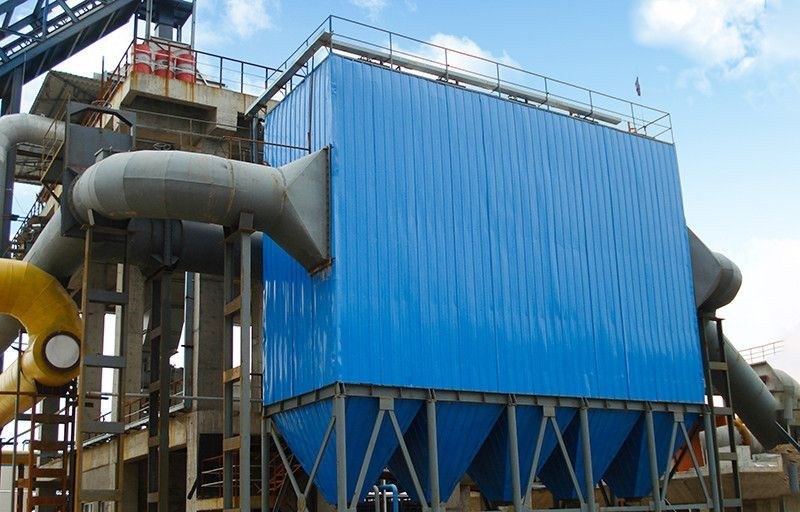

Image:
