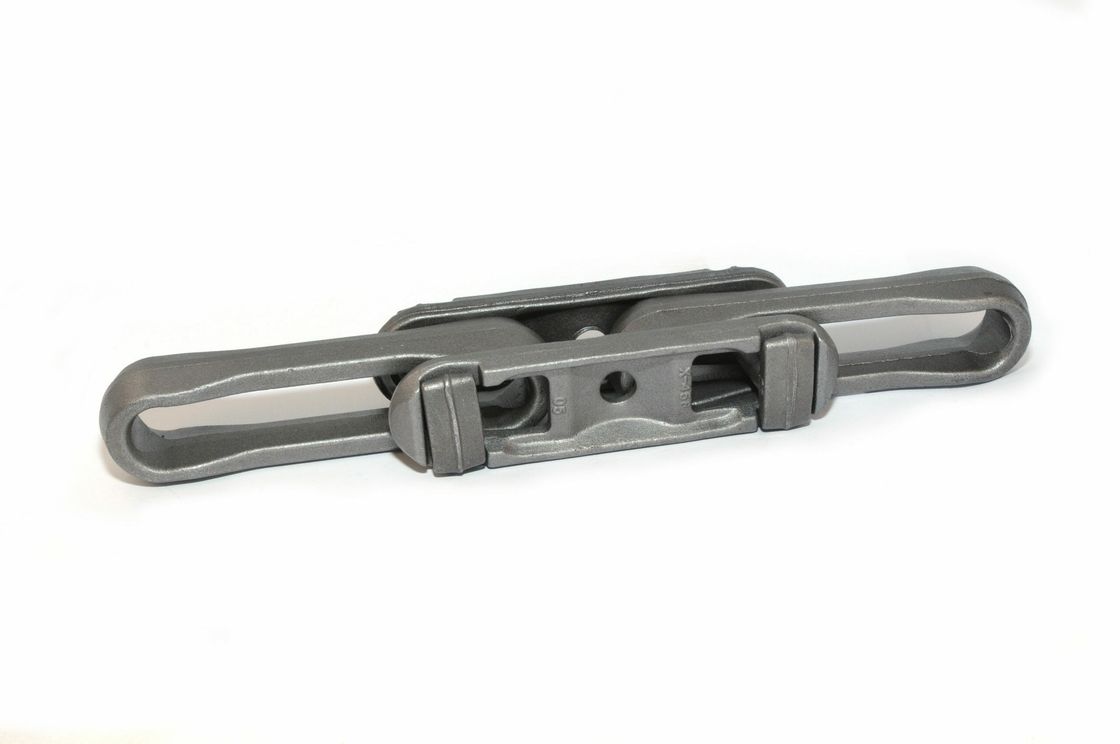

Conveyor Drop Forged Chains Stacker Reclaimer Chains For Mining Industry
Description:
Reclaimer Chains is a basic part of stacker and reclaimer. Chains for stacker and reclaimer is widely applied in mines, power plants, coal plants, cement plants and other fields, which plays role in stacking or conveying granular material, metal raw material.
The anti-dust properties of our Stacker Reclaimer Chain make it an ideal selection for reclaimers, offering up to 3x the wear life of a standard Bearing Roller Chain. Seals and a special external roller bearing construction prevent dust from entering the bushes and rollers, coupled with large bearing areas, increased hardness and deep case depth to bring you unparalleled performance. The chain is made to order, with a wide variety of options to meet the unique challenges of your operation.
Parameter:
| Model | Pitch |
Inner Section width |
Roller Outer Diameter | Pin Diameter | Plate Chain Height | Vertical Plate Hole Height | Vertical Plate Hole Spacing | Vertical Plate Aperture |
| 1 | 250 | 55.2 | 95 | 28 | 75 | 110 | 180 | 25 |
| 2 | 250 | 55.2 | 95 | 28 | 75 | 120 | 180 | 25 |
| 3 | 250 | 50 | 70 | 19.7 | 50 | 110 | 180 | 21 |
| 4 | 250 | 58 | 80 | 25.5 | 60 | 115.2 | 180 | 21 |
| 5 | 315 | 54.7 | 120 | 36 | 85 | 110 | 200 | 25 |
| 6 | 250 | 55.5 | 70 | 20 | 60 | 120 | 190 | 25 |
| Model | Pitch |
Inner Section width |
Roller Outer Diameter | Pin Diameter | Plate Chain Height | Platform Height | Lateral distance | Accessory hole spacing | Accessory hole spacing |
| 1 | 250 | 55.2 | 95 | 28 | 75 | 125 | 100 | 100 | 25 |
| 2 | 250 | 46 | 95 | 25 | 72 | 106 | 100 | 100 | 26 |
| 3 | 250 | 42 | 85 | 21 | 63 | 90.75 | 100 | 100 | 21 |
| 4 | 250 | 57.2 | 50.8 | 24 | 63.5 | 70 | 40 | 40 | 14 |
| 5 | 250 | 42 | 42 | 21 | 62 | 90 | 100 | 100 | 21 |
| 6 | 250 | 48 | 100 | 25 | 70 | 85 | 120 | 120 | 17 |
| 7 | 315 | 62 | 100 | 30 | 89 | 94.5 | 105 | 105 | 18.5 |
| 8 | 400 | 65 | 120 | 40 | 100 | 125 | 140 | 140 | 26 |
Our offered product range is made available in different shapes, sizes and capacities to meet the varied needs of the market. These Reclaimer Chains are fabricated using high grade raw material that is sourced from the most certified vendors of the industry.
Our products are sold all over the world, you can rest assured.
