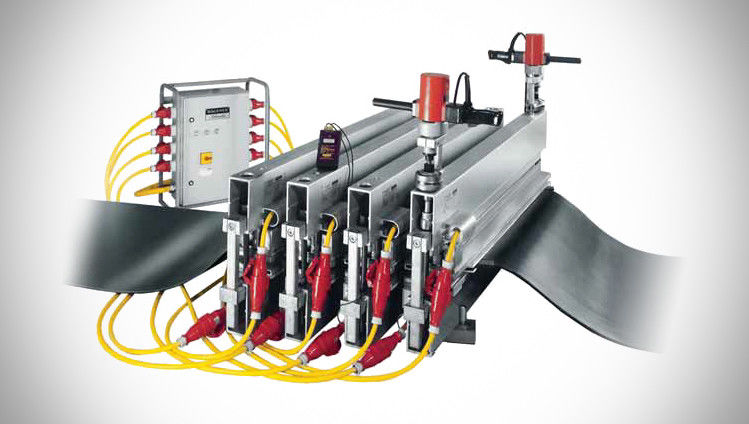

Rubber Conveyor Belt Vulcanizing Machine Portable Conveyor Belt Vulcanising Machine
Product Description
Portable Conveyor Belt Vulcanising Machine used conveyor belt vulcanizer is made of aluminum alloy, small volume and light weight, three-phase source of power supply. The temperature of the heating plate is uniform. Water press system can supply stable press.
Portable Conveyor Belt Vulcanizing Machine has aluminum frame that allows for quick and easy operations. Offer great hot vulcanized splicing for all fabric ply belts. The frame includes end handles and positioning rings (for larger models), it can easy to maneuver into the desired splice position.
Product Parameter
| Model | Vulcanized tape width | Specification | Heating plate size (mm) | Power | Dimensions (mm) | Weight |
| (mm) | (mm) | (kw) | (L×W×H) | (kg) | ||
| DGLJL-1-650 | 650 | 650×830 | 820×830 | 10.8 | 1322×830×585 | 440 |
| 650×1000 | 820×1000 | 13 | 1384×1000×585 | 530 | ||
| DGLJL-1-800 | 800 | 800×830 | 995×830 | 12.7 | 1492×830×585 | 515 |
| 800×1000 | 995×1000 | 15.4 | 1554×1000×585 | 630 | ||
| DGLJL-1-1000 | 1000 | 1000×830 | 1228×830 | 15 | 1692×830×585 | 600 |
| 1000×1000 | 1228×1000 | 18 | 1754×1000×585 | 715 | ||
| DGLJL-1-1200 | 1200 | 1200×830 | 1431×830 | 18.2 | 1922×830×750 | 800 |
| 1200×1000 | 1431×1000 | 22 | 1984×1000×750 | 912 | ||
| DGLJL-1-1400 | 1400 | 1400×830 | 1653×830 | 20.6 | 2142×830×750 | 885 |
| 1400×1000 | 1653×1000 | 24.6 | 2204×1000×750 | 1050 | ||
| DGLJL-1-1600 | 1600 | 1600×830 | 1867×830 | 22.8 | 2382×830×795 | 1130 |
| 1600×1000 | 1867×1000 | 27.2 | 2444×1000×795 | 1325 | ||
| DGLJL-1-1800 | 1800 | 1800×830 | 2079×830 | 25 | 2592×830×900 | 1420 |
| 1800×1000 | 2079×1000 | 30 | 2654×1000×900 | 1630 | ||
| DGLJL-1-2000 | 2000 | 2000×830 | 2303×830 | 27.4 | 2792×830×900 | 1560 |
| 2000×1000 | 2303×1000 | 33 | 2854×1000×900 | 1824 | ||
| DGLJL-1-2200 | 2200 | 2200×830 | 2478×830 | 30 | 2992×830×980 | 1720 |
| 2200×1000 | 2478×1000 | 36.2 | 3054×1000×980 | 2030 |
Product Application
1. Steel Cord Belt Intermediate Rubber is an uncured rubber for hot vulcanized belt splicing.
2. It is designed to use as an inter-core cord rubber replacement material in splicing steel cord conveyor belts or a tie gum in fabric belts.
3. The material is designed to bond to cured intercore rubber and wire cords in all standard grade steel cord conveyor belts, as well as fabric belt cured skim rubber and general bond improvement material for general grade fabric conveyor belts.
