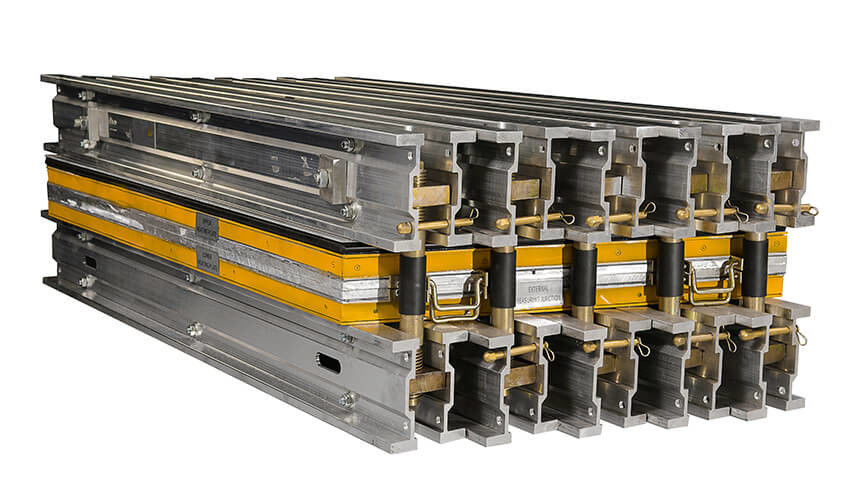

DGLJL Vulcanising Press Conveyor Belt Vulcanizing Equipment Belt Vulcanizer
Product Description:
DGLJL Electric Heating Tape Vulcanizing Machine, also called Belt Vulcanizer, is light weight and has ordinary three phase power supply, uniform temperature of hot plate, water pressure system supply (o-1.8mpa uniform pressure, equipped with light automatic electronic control. The connection between the box and the main control box is completed by the integrated plug-in and the core cable. It is easy to operate and reliable.
The quality of the tape joint directly affects the working efficiency and service life of the tape. Especially the long-distance and high-strength conveyor belts are more important. Therefore, the DGLJL type electric heating tape vulcanizing machine is an indispensable auxiliary equipment in the tape transportation machinery.
Conveyor Belt Vulcanizing Equipment is widely used in metallurgy, mines, power plants, ports, building materials, chemicals, etc.
Product Parameter:
1. Vulcanization pressure: 1.5mpa;
2. Vulcanization temperature: 145℃;
3. Vulcanization plate temperature difference: ±3℃;
4. The heating time (from normal temperature to 145℃) is not more than 50 minutes; the gap is not more than 0.5mm
5. Power supply voltage: 380V, 50Hz;
6. Electric control box output power: 36Kw;
7. Temperature adjustment range: room temperature ~ 200℃;
8. Timing adjustment range: 0~59min:;
9. Pressurization of upper and lower heating plates: after 08mp
| Model | Vulcanized tape width | Specification | Heating plate size (mm) | Power | Dimensions (mm) | Weight |
| (mm) | (mm) | (kw) | (L×W×H) | (kg) | ||
| DGLJL-650 | 650 | 650×830 | 820×830 | 10.8 | 1322×830×585 | 440 |
| 650×1000 | 820×1000 | 13 | 1384×1000×585 | 530 | ||
| DGLJL-800 | 800 | 800×830 | 995×830 | 12.7 | 1492×830×585 | 515 |
| 800×1000 | 995×1000 | 15.4 | 1554×1000×585 | 630 | ||
| DGLJL-1000 | 1000 | 1000×830 | 1228×830 | 15 | 1692×830×585 | 600 |
| 1000×1000 | 1228×1000 | 18 | 1754×1000×585 | 715 | ||
| DGLJL-1200 | 1200 | 1200×830 | 1431×830 | 18.2 | 1922×830×750 | 800 |
| 1200×1000 | 1431×1000 | 22 | 1984×1000×750 | 912 | ||
| DGLJL-1400 | 1400 | 1400×830 | 1653×830 | 20.6 | 2142×830×750 | 885 |
| 1400×1000 | 1653×1000 | 24.6 | 2204×1000×750 | 1050 | ||
| DGLJL-1600 | 1600 | 1600×830 | 1867×830 | 22.8 | 2382×830×795 | 1130 |
| 1600×1000 | 1867×1000 | 27.2 | 2444×1000×795 | 1325 | ||
| DGLJL-1800 | 1800 | 1800×830 | 2079×830 | 25 | 2592×830×900 | 1420 |
| 1800×1000 | 2079×1000 | 30 | 2654×1000×900 | 1630 | ||
| DGLJL-2000 | 2000 | 2000×830 | 2303×830 | 27.4 | 2792×830×900 | 1560 |
| 2000×1000 | 2303×1000 | 33 | 2854×1000×900 | 1824 | ||
| DGLJL-2200 | 2200 | 2200×830 | 2478×830 | 30 | 2992×830×980 | 1720 |
| 2200×1000 | 2478×1000 | 36.2 | 3054×1000×980 | 2030 |
Our Service:
1. Overseas service and technical support can be supplied
2. We will get the machines dispatched within the stipulated time
3. 24 hours online service, immediate response to your request
4. Testing machine is available, make sure customer satisfied with machine's quality
5. Help customer to design, make drawing,accept OEM rubber machine
Our products are sold all over the world, you can rest assured.
