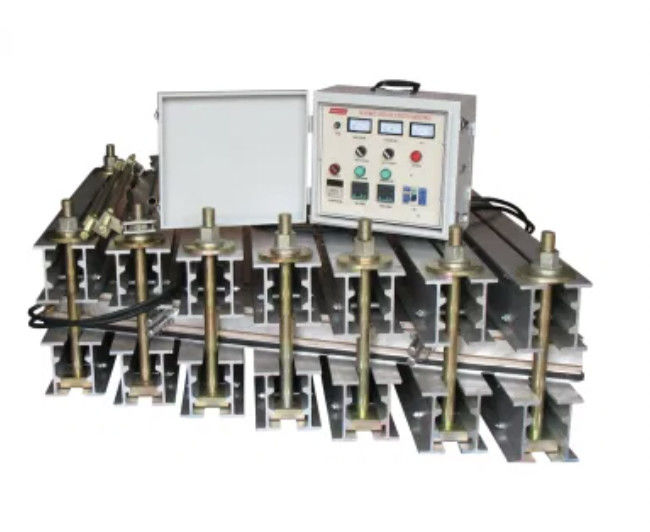

Lightweight Vulcanizing Press Conveyor Belt Vulcanizing Tools Conveyor Belt Vulcanizer
Product Description:
Vulcanization is the process of curing raw rubber by combining the rubber with additives in the presence of heat and pressure (“hot” vulcanization). Bonding of the belt ends with adhesives is known in the belting trade as “cold”vulcanization.
Vulcanization is generally the preferred method of belt splicing, due to the superior strength, longer service-life and cleaner operation it offers. Vulcanized splices are really the only option for the long-term performance of high-tension steel-cord belting. Operations that require frequent additions or removal of sections of belting, such as extendable underground belts or conveyors with limited take-up capabilities that require shortening of the belt to maintain tension, are not suitable for vulcanized splices.
Due to their superior strength, vulcanized splices allow the application of maximum belt tension, resulting in better pulley-to-belt traction. A vulcanized splice has no internal weaving, braiding, sewing, welding or other mechanical link. The splice is solely dependent on rubber adhesion to the carcass or steel cords, as the tensile members of the splice, textile plies or steel cords, do not touch each other. Adhesion is obtained through use of an intermediary rubber or rubber-like material called tie gum, installation gum, or cement.
Product Parameter:
| Model | Vulcanized tape width | Specification | Heating plate size (mm) | Power | Dimensions (mm) | Weight |
| (mm) | (mm) | (kw) | (L×W×H) | (kg) | ||
| DGLJL-650 | 650 | 650×830 | 820×830 | 10.8 | 1322×830×585 | 440 |
| 650×1000 | 820×1000 | 13 | 1384×1000×585 | 530 | ||
| DGLJL-800 | 800 | 800×830 | 995×830 | 12.7 | 1492×830×585 | 515 |
| 800×1000 | 995×1000 | 15.4 | 1554×1000×585 | 630 | ||
| DGLJL-1000 | 1000 | 1000×830 | 1228×830 | 15 | 1692×830×585 | 600 |
| 1000×1000 | 1228×1000 | 18 | 1754×1000×585 | 715 | ||
| DGLJL-1200 | 1200 | 1200×830 | 1431×830 | 18.2 | 1922×830×750 | 800 |
| 1200×1000 | 1431×1000 | 22 | 1984×1000×750 | 912 | ||
| DGLJL-1400 | 1400 | 1400×830 | 1653×830 | 20.6 | 2142×830×750 | 885 |
| 1400×1000 | 1653×1000 | 24.6 | 2204×1000×750 | 1050 | ||
| DGLJL-1600 | 1600 | 1600×830 | 1867×830 | 22.8 | 2382×830×795 | 1130 |
| 1600×1000 | 1867×1000 | 27.2 | 2444×1000×795 | 1325 | ||
| DGLJL-1800 | 1800 | 1800×830 | 2079×830 | 25 | 2592×830×900 | 1420 |
| 1800×1000 | 2079×1000 | 30 | 2654×1000×900 | 1630 | ||
| DGLJL-2000 | 2000 | 2000×830 | 2303×830 | 27.4 | 2792×830×900 | 1560 |
| 2000×1000 | 2303×1000 | 33 | 2854×1000×900 | 1824 | ||
| DGLJL-2200 | 2200 | 2200×830 | 2478×830 | 30 | 2992×830×980 | 1720 |
| 2200×1000 | 2478×1000 | 36.2 | 3054×1000×980 | 2030 |
Product Application:
Vulcanizing Equipment and Vulcanizing Tool for repairing & splicing of conveyor belt.
Conveyor Belt Vulcanizer is dependable, lightweight and portable machine, which is widely used in the field of metallurgy, mining, power plants, ports, building materials, cement, coal mine, chemical industry,
Conveyor Belt Vulcanising Machine suits for various conveyor belts, such as EP, Rubber, Nylon, Canvas and Steel cord belt, etc.
Our Service:
1. Overseas service and technical support can be supplied
2. We will get the machines dispatched within the stipulated time
3. 24 hours online service, immediate response to your request
4. Testing machine is available, make sure customer satisfied with machine's quality
5. Help customer to design, make drawing, accept OEM rubber machine
Our products are sold all over the world, you can rest assured.
