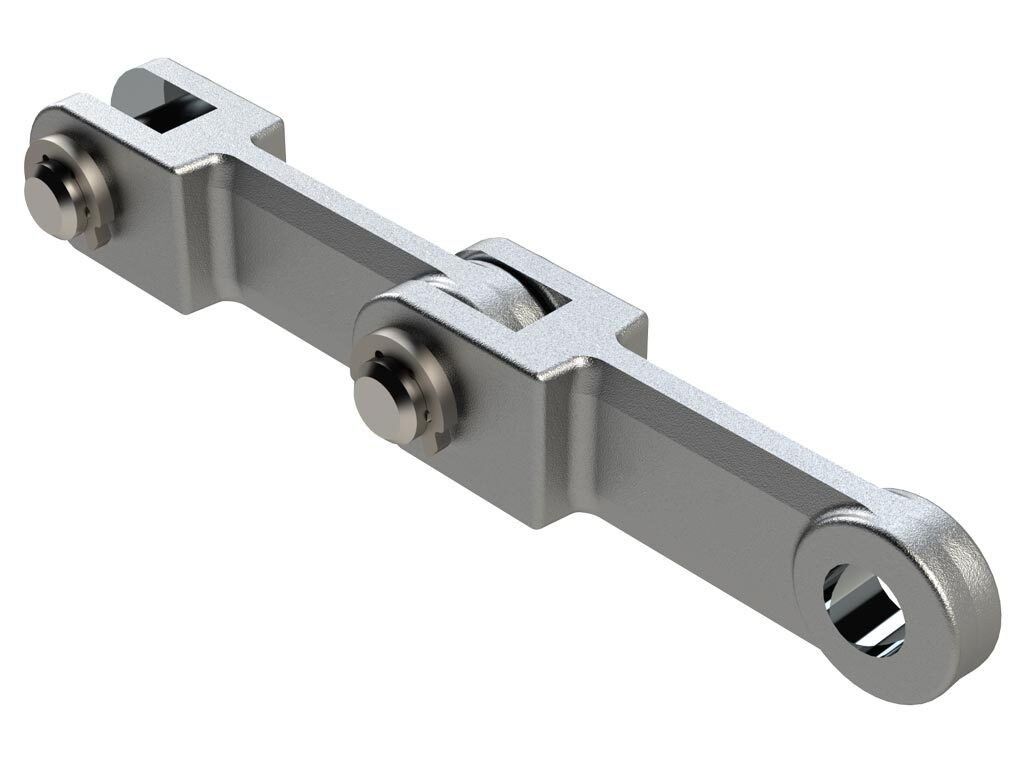

Drop Forged Rivetless Chain Steel Detachable Chain Links For Overhead Conveyor
Description:
Drop Forged Chain components are heat treated to achieve greater durability and extended chain life. Precise pitch control and smooth bearing area for optimal wear life. drop forged chains are commonly used in overhead conveyor systems and automated material handling systems.
Drop Forged Rivetless Chain is used extensively for trolley conveyors, drag conveyors and flight conveyors. It is an ideal chain for these applications due to its high strength to weight ratio, its ability to flex in both the horizontal and vertical planes, and the overall simplicity of the chain i.e. it comprises three components which can be assembled and disassembled by hand without the use of tools.
Parameter:
| Model | Pitch |
Inner Section width |
Outer Diameter | Pin Diameter | Fixed Aperture | Chain Plate Thickness | Wide Chain Plate | Chain Bucket Installation Dimensions |
| SCD 630 | 250 | 60 | 60 | 44 | 14 | 110 | 20 | 80×100 |
| SCD 630 | 250 | 50 | 50 | 32 | 14 | 100 | 15 | 80×80 |
| SCD 630 | 250 | 50 | 50 | 34 | 14 | 100 | 15 | 80×80 |
| SCD 800 | 250 | 66 | 66 | 44 | 14 | 110 | 16 | 80×100 |
| SCD 1000 | 250 | 66 | 66 | 44 | 14 | 110 | 26 | 80×100 |
| SCD 1600 | 250 | 66 | 66 | 44 | 14 | 110 | 26 | 80×100 |
Quality Control:
• Raw material analysis is received with steel suppliers certificate.
• Regular dimensional checks take place
• Pitch tolerance is checked every 1000 metres.
• Hardness checks are carried out on 1 part in 1000 components.
• Samples of each batch are crack detected.
If the customer requests it, 100% magnaflux crack detection can be carried out.
