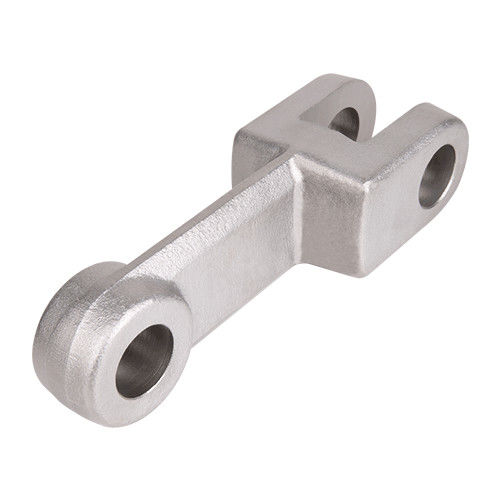

Steel Forged Link Conveyor Chain Overhead Conveyor Chains
Description:
Drop Forged Chains or en-masse chains are versatile, simple chains offering high strength & wear resistance. Capable of conveying a multitude of products on inclines up to vertical and at temperatures of up to 1000 °C (depending on the chain alloy selected). The conveyor design can be totally enclosed and very compact. Available pitch is 250mm.
Feature:
Conveying inclines up to 90 degrees
Ideal for conveying free-flowing bulk materials
Allows for total enclosed design with easily replaced components
Parameter:
| Model | Pitch |
Inner Section width |
Outer Diameter | Pin Diameter | Fixed Aperture | Chain Plate Thickness | Wide Chain Plate | Chain Bucket Installation Dimensions |
| SCD 630 | 250 | 60 | 60 | 44 | 14 | 110 | 20 | 80×100 |
| SCD 630 | 250 | 50 | 50 | 32 | 14 | 100 | 15 | 80×80 |
| SCD 630 | 250 | 50 | 50 | 34 | 14 | 100 | 15 | 80×80 |
| SCD 800 | 250 | 66 | 66 | 44 | 14 | 110 | 16 | 80×100 |
| SCD 1000 | 250 | 66 | 66 | 44 | 14 | 110 | 26 | 80×100 |
| SCD 1600 | 250 | 66 | 66 | 44 | 14 | 110 | 26 | 80×100 |
