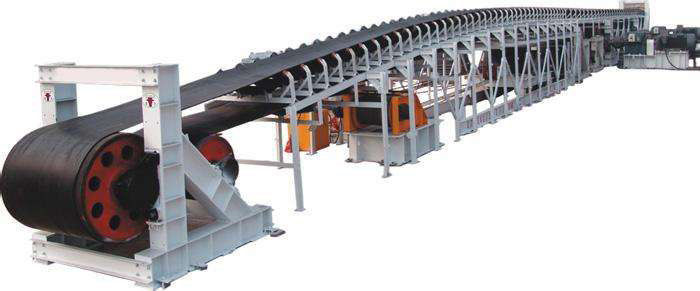

Long Distance Belt Conveyor Material Handling Equipment Heavy Duty Rubber Conveyor Belt
Belt Conveyor Description:
Belt Conveyor is a kind of machine that to transfer the material continuously. The belt works under the effect of frictional force. It is not only the components to transfer the material, but also the components to transfer the force. The Belt Conveyor is advanced and simple in structure, easy to maintain. Its transfer capacity is high, transfer distance is long. They are widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material. In many situation, it Is a very important component of nonstandard machinery.
Belt Conveyor Feature:
No limit of land form and physiognomy
Long distance transportation, farthest several decadal kilometers
No midway transport station, material can be carried to terminus directly Save investment, reduce cost of maintenance and operation Reduce noises and pollution, better for environment protection
Product Specification:
| Type | Product Name | Model | Specification | Feature |
|
Belt Conveyor |
TD75 Belt Conveyor |
TD75 | B=500,650,800,1000,1200,1400 |
Multi-series general-purpose belt conveyors;
Applied in metallurgy, mining, ports, power stations, building materials, chemicals, light industry, petroleum and other industries;
Maximum width B=2600mm, maximum length 11km
|
|
DTⅡ Belt Conveyor |
DTⅡ |
B=500,650,800,1000,1200,1400, 1600,1800,2000,2200,2400 |
||
|
DTⅡA Belt Conveyor |
DTⅡA |
B=500,650,800,1000,1200,1400, 1600,1800,2000,2200,2400,2600 |
||
|
DJ.JB Large Angle Belt Conveyor |
DJ.JB | B=500,650,800,1000,1200 | Adopt corrugated sidewalls Maximum inclination angle 90° |
|
|
DY Mobile Belt Conveyor |
DY | B=500,650,800,1000 | Maximum conveying length 20 meters |
Component Composition:
1. Driving device, used to provide power
2. Roller, the core component of the conveyor, the transmission roller drives the belt through friction to achieve the purpose of sending materials from one point to another, the redirection roller changes the running direction of the belt and increases the wrapping angle of the transmission roller. The larger the wrapping angle, the smaller the required tension.
3. Conveyor belt, the material bearing and traction part, commonly used are cotton canvas belt, polyester canvas belt, wire rope core belt, etc.
4. Roller, used to support the belt and material for stable operation.
5. Tensioning device, its function is to keep the conveyor belt with the necessary tension to prevent slipping, and at the same time control the deflection of the conveyor belt between the rollers, to reduce resistance and avoid material spillage.
6. Cleaner, head cleaner and empty section cleaner, prevent materials from being rolled into rollers and drums and falling on the ground.
7. The frame, including the head frame, tail frame, middle frame, legs, etc., is the skeleton of the conveyor.
8. The guide trough and funnel mainly play the role of material transfer and storage
9. The protection device is a variety of electrical switches set to protect the safety and normal operation of the conveyor system.
Product Application:
Belt conveyors are important equipment for bulk material transportation and loading and unloading, and are widely used in various industries such as mining, metallurgy, coal, ports, power stations, building materials, chemicals, light industry, and petroleum.
Our products are sold all over the world, you can rest assured.
