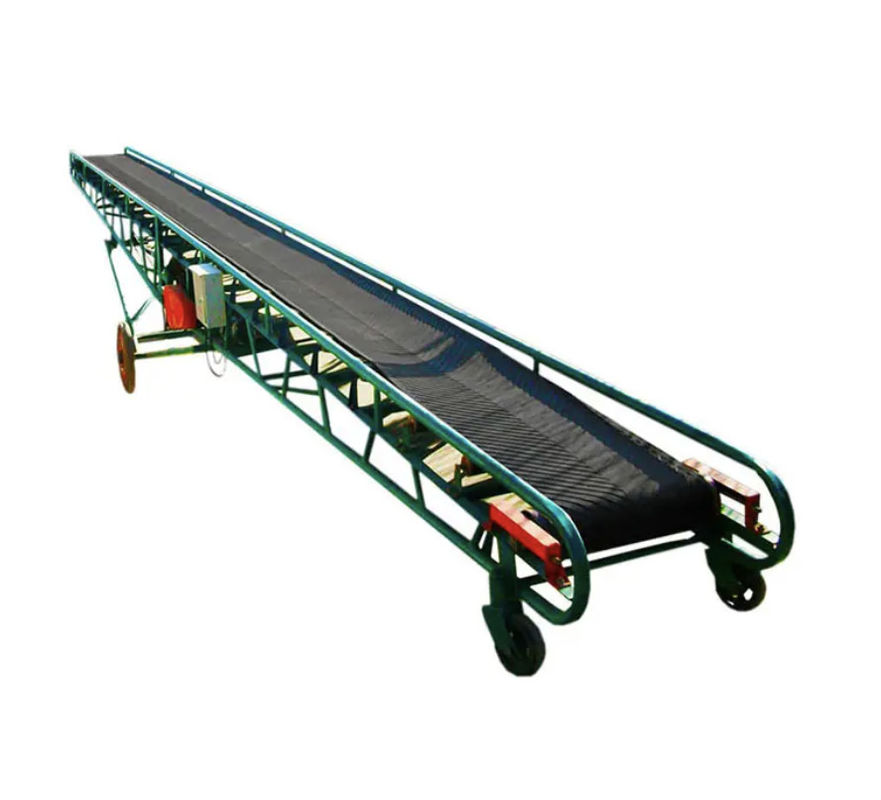

20m Lightweight Portable Conveyor Belt Portable Incline Conveyor
Working Principle:
1. Conveyor belt system: A mobile belt conveyor includes one or more conveyor belts that move along a path with a support structure. The conveyor belt is driven by a drive device (usually an electric motor) to drive the material along the conveying line.
2. Support structure: The support structure includes components such as a frame, support columns and support wheels for supporting the conveyor belt. These support structures not only support the conveyor belt, but also ensure that the conveyor belt remains horizontal and can move smoothly.
3. Electric drive device: Usually, a mobile belt conveyor is equipped with an electric drive device, such as an electric motor or engine, to provide power to drive the conveyor belt to move.
4. Control system: A mobile belt conveyor is usually equipped with a control system that can control the speed, direction and stop of the conveyor belt to meet different material transportation needs.
5. Moving mechanism: The moving mechanism of a mobile belt conveyor includes wheels or tracks, which enable it to move freely in the working scene, such as moving between construction sites, warehouses or docks.
6. Application specific functions: Some mobile belt conveyors may also be equipped with specific functions, such as adjustable height, adjustable angle, foldable design, etc., to adapt to different working environments and requirements.
Product Specification:
| Type | Product Name | Model | Specification | Feature |
| Belt Conveyor |
TD75 Belt Conveyor |
TD75 | B=500,650,800,1000,1200,1400 |
Multi-series general-purpose belt conveyors;
Applied in metallurgy, mining, ports, power stations, building materials, chemicals, light industry, petroleum and other industries;
Maximum width B=2600mm, maximum length 11km
|
|
DTⅡ Belt Conveyor |
DTⅡ |
B=500,650,800,1000,1200,1400, 1600,1800,2000,2200,2400 |
||
|
DTⅡA Belt Conveyor |
DTⅡA |
B=500,650,800,1000,1200,1400, 1600,1800,2000,2200,2400,2600 |
||
|
DJ.JB Large Angle Belt Conveyor |
DJ.JB | B=500,650,800,1000,1200 | Adopt corrugated sidewalls Maximum inclination angle 90° |
|
|
DY Mobile Belt Conveyor |
DY | B=500,650,800,1000 | Maximum conveying length 20 meters |
Product Application:
1. Construction Sites: Mobile belt conveyors are commonly used in construction sites for efficient material handling of aggregates, sand, gravel, and other construction materials.
2. Warehousing and Distribution Centers: They are utilized for loading and unloading trucks, containers, and trailers in warehouses and distribution centers.
3. Agriculture: Mobile belt conveyors can be used in agricultural settings for handling crops, seeds, fertilizers, and other agricultural products.
4. Mining and Quarries: They are employed in mining operations and quarries for transporting bulk materials such as ore, coal, and aggregates.
5. Ports and Terminals: Mobile belt conveyors are used in ports and terminals for efficient loading and unloading of ships and barges.
Our products are sold all over the world, you can rest assured.
