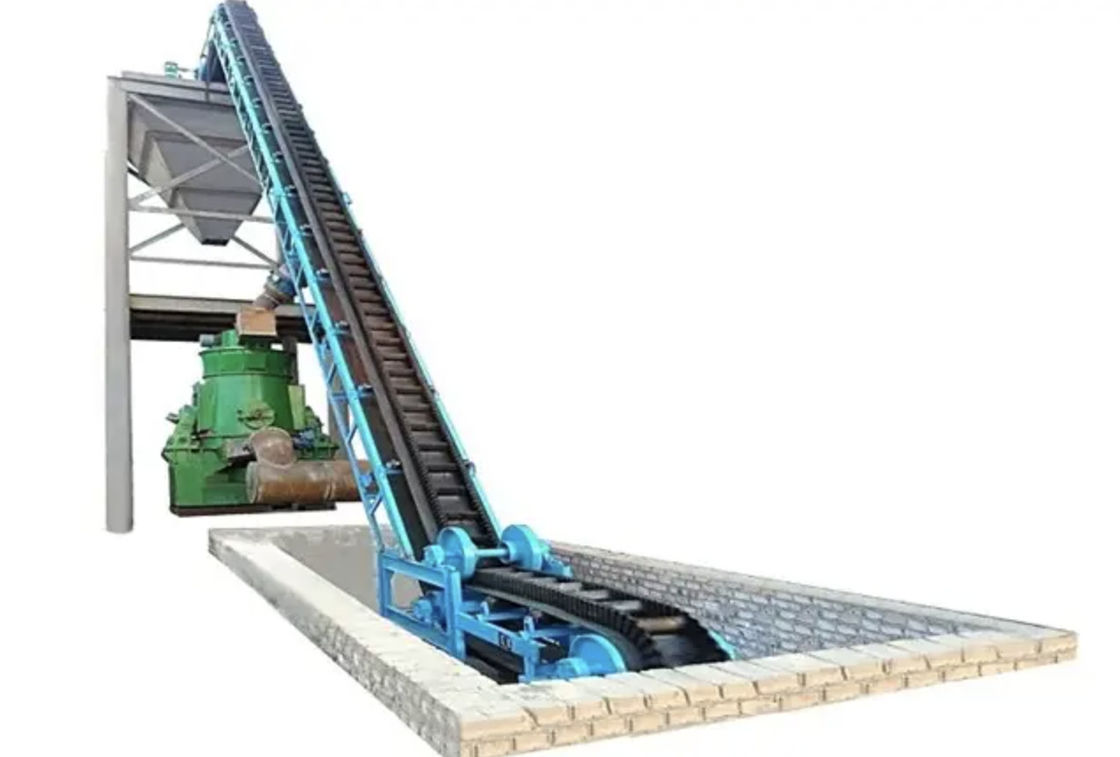

Maximum Inclination Angle 90° Large Angle Belt Conveyor Large Dip Corrugated Belt Conveyor
Belt Conveyor Description:
Large Angle Vertical Sidewall Belt Conveyor (also called large dip corrugated belt conveyor) with a large inclination transport. So that it is ideal equipment for achieving large angle conveying. Widely adopted in underground projects.
-- Sidewall conveyor belts are composed of three parts:base belt,sidewall and cleats
-- Possible to convey at steep angle with big capacity in a limited space
-- Special treated steel mesh inserted into both top cover and bottom cover,creating an excellent combination of longitudinal flexibility and transverse rigidity.
-- The entire steep angle conveyor belts are highly durable,low elongation and long lasting
Belt Conveyor Advantage:
1. Low maintenance cost.
2. Large transport capacity, and it can avoid material spilling effectively.
3. The belt can facilitate switching from horizontal to inclined conve eying and from inclined to horizontal conveying.
4. It saves a lot space as it allows material conveying at 0-90 degree.
Product Specification:
| Type | Product Name | Model | Specification | Feature |
|
Belt Conveyor |
TD75 Belt Conveyor |
TD75 | B=500,650,800,1000,1200,1400 |
Multi-series general-purpose belt conveyors;
Applied in metallurgy, mining, ports, power stations, building materials, chemicals, light industry, petroleum and other industries;
Maximum width B=2600mm, maximum length 11km
|
|
DTⅡ Belt Conveyor |
DTⅡ |
B=500,650,800,1000,1200,1400, 1600,1800,2000,2200,2400 |
||
|
DTⅡA Belt Conveyor |
DTⅡA |
B=500,650,800,1000,1200,1400, 1600,1800,2000,2200,2400,2600 |
||
|
DJ.JB Large Angle Belt Conveyor |
DJ.JB | B=500,650,800,1000,1200 | Adopt corrugated sidewalls Maximum inclination angle 90° |
|
|
DY Mobile Belt Conveyor |
DY | B=500,650,800,1000 | Maximum conveying length 20 meters |
Product Application:
1. Coal and wood-chip fired power stations
2. Underground mining (coal and ore)
3. Shaft conveying for tunnelling and underground mining
4. Steel industry
5. Ship loading and unloading, ship to ship loading
6. Sand preparation in foundry plants
7. Silo feeding
8. Slope conveying in openpit mining
9. Waste recycling, soil purification and water treatment
10. Handling of large material flows in the horizontal path
Our products are sold all over the world, you can rest assured.
